NO-TORSION cables
A complete range of NO-TORSION cables has been studied and got ready for fly sails, type code zero, drifter and gennaker, which can be used on all new furling systems.
NO-TORSION cables are available in four sizes, in order to satisfy all loading implications for any type of boats.
They are custom built, according to the specific length of the sail (data given by the sail-maker).
NO-TORSION cables are available in four sizes, in order to satisfy all loading implications for any type of boats.
They are custom built, according to the specific length of the sail (data given by the sail-maker).

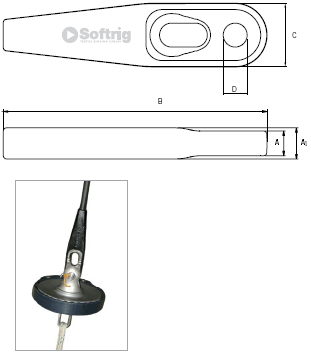

| TERMINAL CODE | A | A1 | B | C | D |
|---|---|---|---|---|---|
| NO TORSION CABLE | [mm] | [mm] | [mm] | [mm] | [mm] |
| (max pin) | |||||
| AT1 | 10 | 14 | 110 | 28 | 10 |
| AT2 | 15.5 | 19.5 | 165.6 | 40 | 15 |
| AT3 | 18.5 | 24.5 | 235 | 54 | 25 |
| AT4 | 21.5 | 29.5 | 257 | 65 | 29 |
